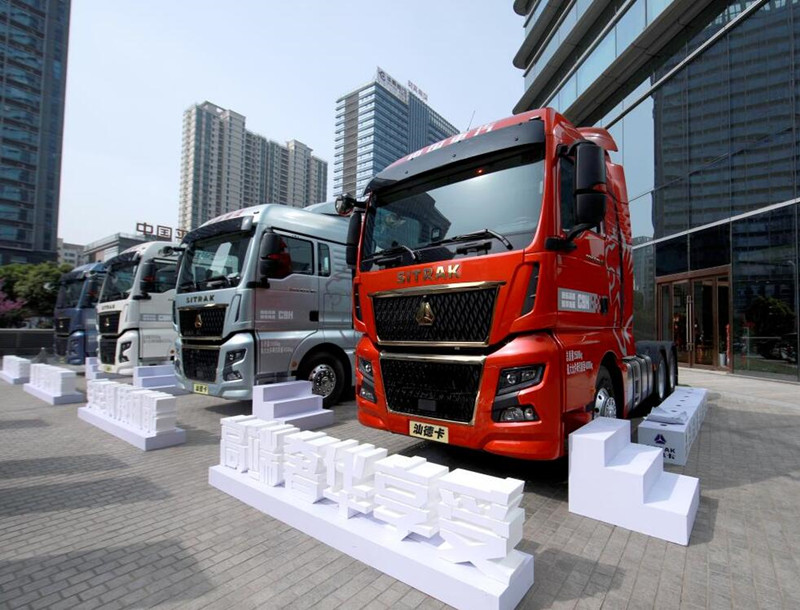

Sinotruk Shandeka's new flagship heavy truck - Shandeka C9H, this is a 570 horsepower 6x4 tractor, equipped with Sinotruk engine + ZF AMT gearbox, airbag seat, with a square appearance and interior. Luxurious and comfortable, equipped with a variety of intelligent equipment to meet the needs of efficient and comfortable transportation.

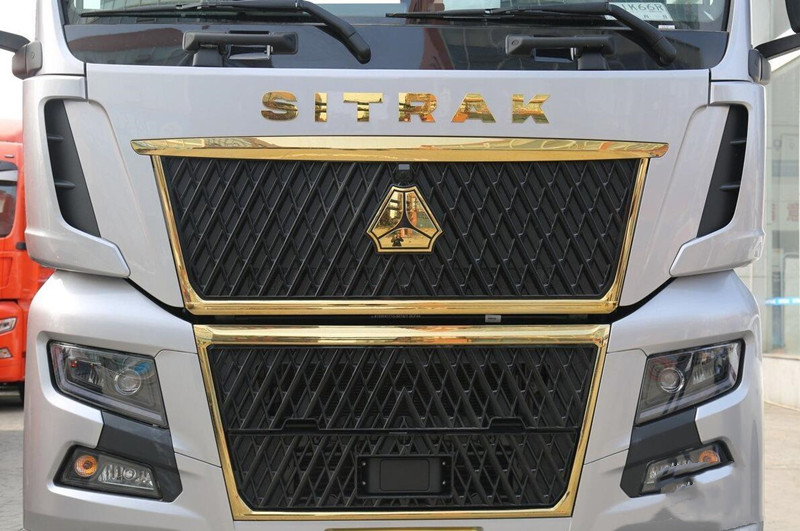

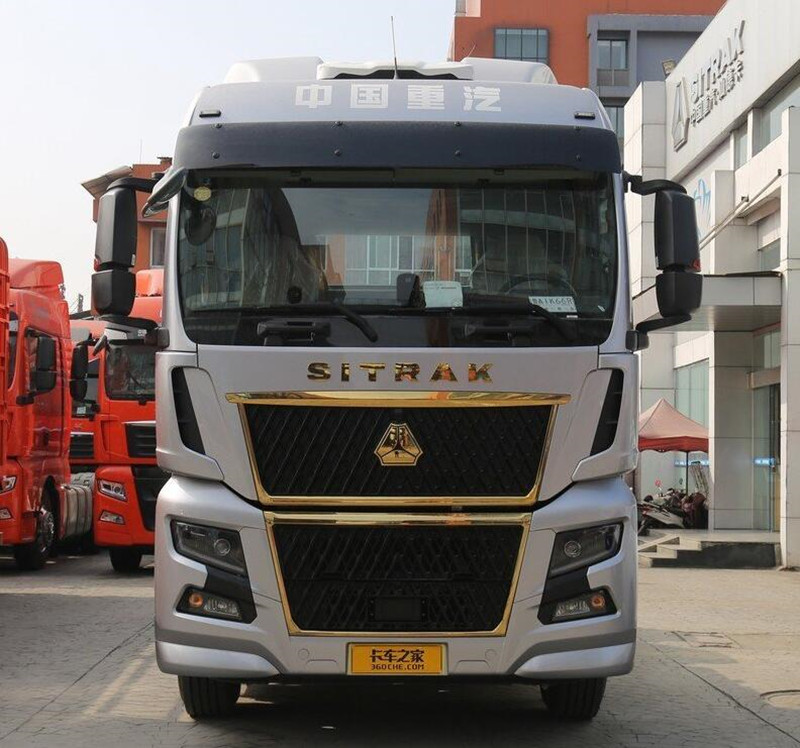

In appearance, the C9H tractor is powerful and domineering, with a strong Shandeka family style. The front air intake grille has been upgraded from the horizontal bar design of the C7H to a diamond-shaped blackened grille, with gold chrome trim strips, highlighting the flagship positioning. The guide grooves on both sides have become larger, further reducing the air resistance at high speeds.
The layout of the tractor lights is very similar to that of the C7H. The upper part is a headlight group with lenses and a boomerang-shaped LED daytime running light, and the lower part is the fog lights and turn signals. But one difference is that the upper and lower light groups are connected by a blackened decorative panel, which looks like a deep feeling in the distance.
The front rearview mirror adopts an integrated design, which is more regular and beautiful as a whole. And it supports electric adjustment and heating functions to ensure a good side and rear vision when driving.

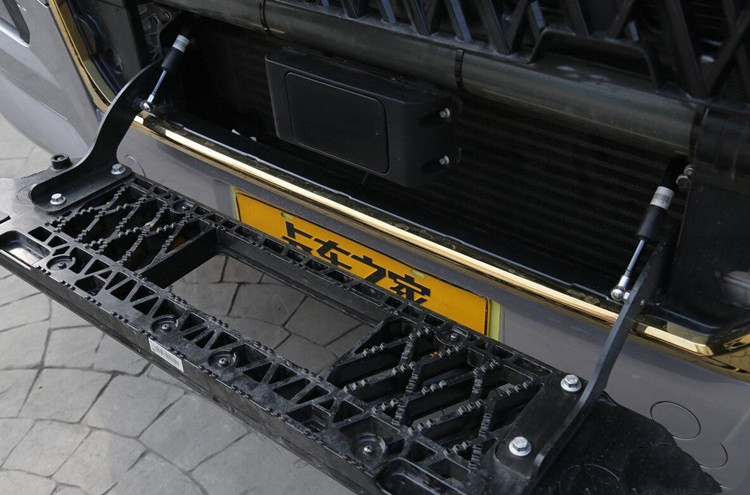

Shandeka C9H tractor changed the original "open", or "built-in" boarding pedal on the bumper to "folding", so that we can easily stand on it to wipe the front windshield, In addition, it can also be used as a "bench" when resting outside the car.
Shandeka C9H tractor is equipped with an inline six-cylinder engine model "Sinotruk MC13H.57-61" with a displacement of 13.0. This engine is also one of the best in terms of displacement among the current 13-level engines. Its maximum output power is 422kw (570 horsepower), the peak torque reaches 2600 Nm, and the power performance is first-class.

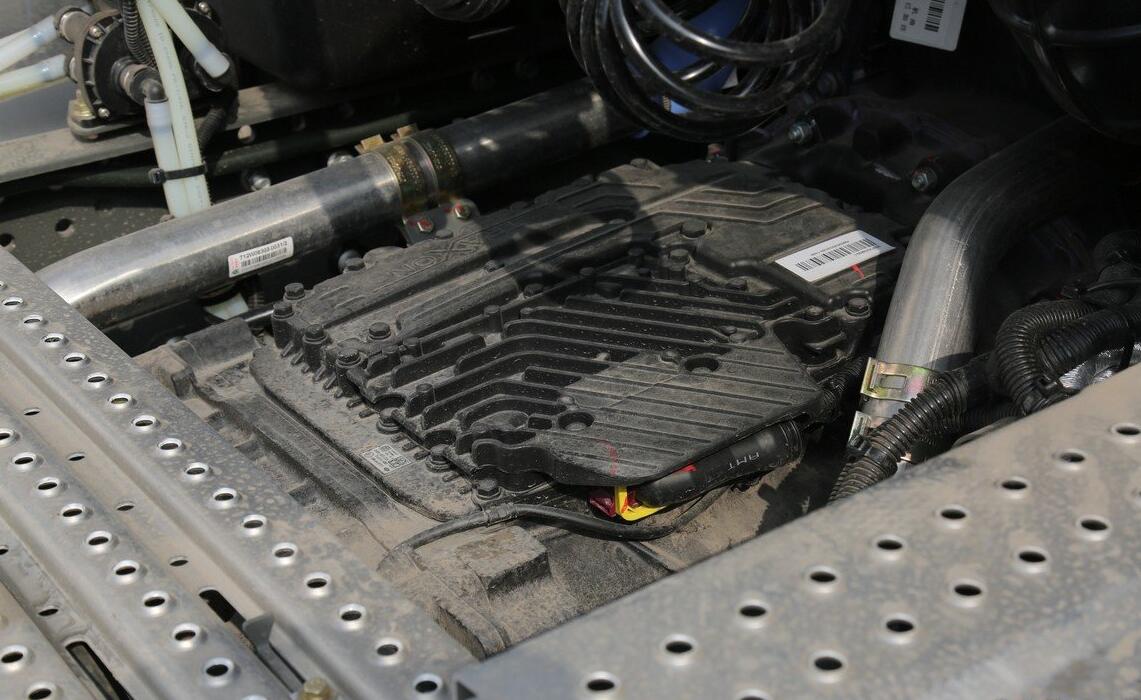

The gearbox matched with this engine in the tractor is a 12-speed AMT gearbox with the model "ZF ZF12TX2620". The highest gear adopts a direct design, the speed ratio is 1, and the transmission efficiency is higher. In addition, this gearbox is matched with ZF's hydraulic retarder, which makes it safer and more economical to use a hydraulic retarder in the face of long downhill conditions such as plateau mountain roads.
The tractor adopts the "Sinotruk MCY12BGS" rear axle with a speed ratio of 3.08. In order to match different working conditions, you can also choose a speed ratio of 2.85 and 2.71. The transmission combination of direct gear and small speed ratio makes Shandeka C9H in the face. It is more handy when it comes to long-distance trunk logistics.

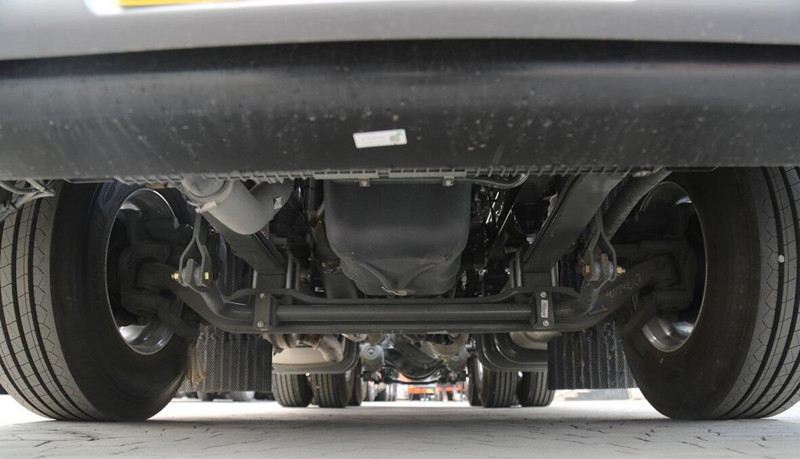

The car also uses a light-weight design with fewer leaf springs at the front, 2 at the rear, and 3 at the rear. If card lovers often transport high-value-added goods that are prone to damage, they can also choose an airbag suspension with better shock absorption.

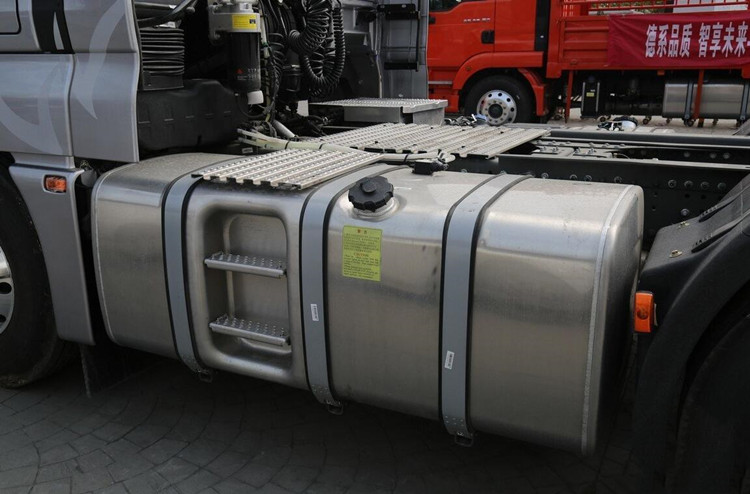

The truck's large fuel tank has a volume of 780 liters, and the auxiliary fuel tank has a volume of 220 liters, totaling 1,000 liters. It is conservatively estimated that it can provide the vehicle with a cruising range of about 3,000 kilometers. Facing long-distance trunk logistics, such a fuel tank volume is still very advantageous.

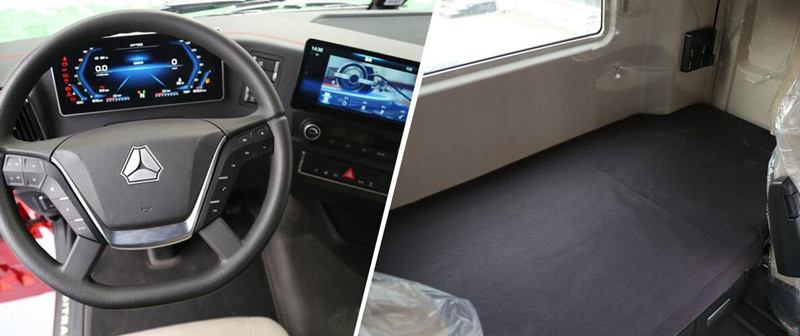

The main and passenger seats of the tractor are equipped with high-profile Isling shock-absorbing seats, and the seats are also wrapped in full leather, which supports the body very well. The seat function adjustment is even richer, all support adjustment options such as shock absorption damping, seat cushion inclination, lumbar back support, etc. In addition, the main driver seat also supports ventilation and heating function, which ensures our driving comfort throughout the year.
The C9H tractor utilizes the space of the cab kyphosis to the greatest extent, and the width of the sleeper is measured at about 88 cm, which has more advantages than tractors of the same level. In addition, at the head of the bed, a functional panel is also configured, which integrates lights, window lifts, and USB charging ports.
