HOWO TX dump truck is equipped with a Weichai 460-horsepower engine, and the B10 life span exceeds 1.8 million kilometers. The chassis of the dump truck is waterproof, the cargo compartment is fully enclosed, and 4-directional cameras are standard.
Howo TX dump truck is equipped with Weichai's exclusive engineering engine, the model is WP12.460E62 engine, 11.6L displacement, the maximum output power is 338kW (460 horsepower), and the peak torque is 2200N.m at 1000-1400rpm. High torque at low speed and fast acceleration.

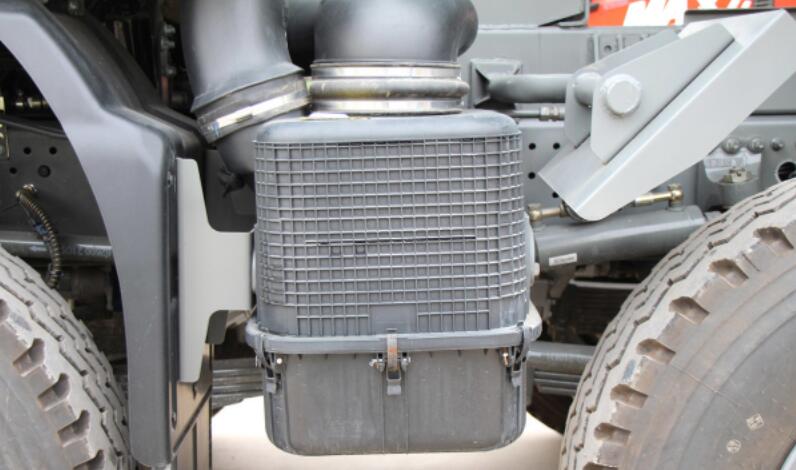

The B10 engine life of this dump truck has exceeded 1.8 million kilometers. In addition, this truck adopts an oil filter air intake system, which can increase the intake air volume, make the combustion more sufficient, and the power explosion is stronger. Load and start easier.
In terms of transmission system, the gearbox selected for this dump truck is Sinotruk HW25712XSL gearbox, with HW50 direct-connected power take-off, the maximum input torque of the gearbox is 2500N.m, the first gear ratio is 14.941, and the highest gear 12 gear ratio If it is 1, the first gear ratio is large, the gear range is small, and the shifting can be smoother, ensuring the power transmission efficiency. Moreover, the gearbox has a built-in filter, which can be forced to be lubricated, which is more suitable for use in complex working conditions.

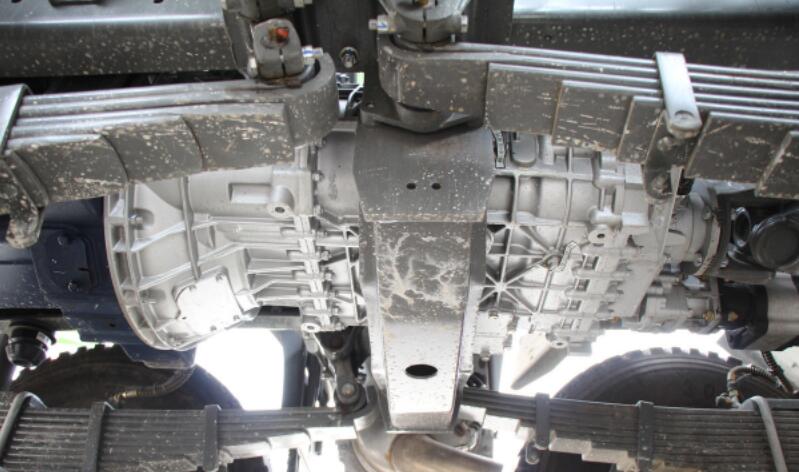

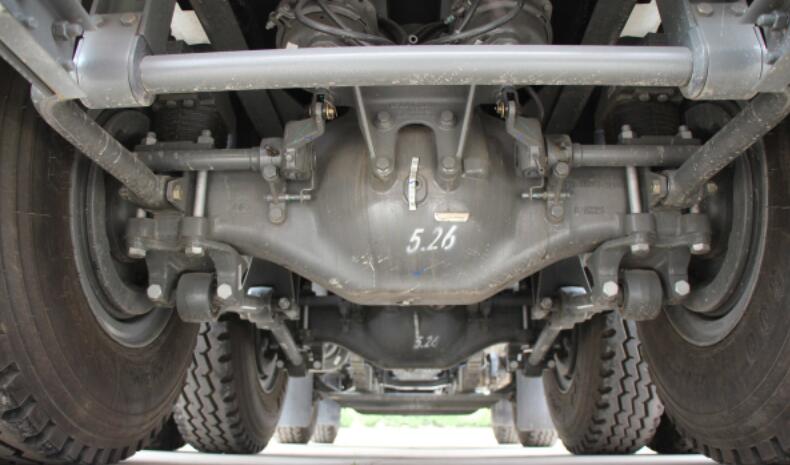

Howo TX dump truck adopts VGD75 self-adjusting arm front axle (7 tons), and the rear axle adopts MAN Technology 16-ton wheel side reduction axle, model MCP16ZG self-adjusting arm double rear axle, axle housing has large ground clearance, Better passability. The rear axle speed ratio is 5.26, which is suitable for use in comprehensive working conditions. In addition, a 5.92 rear axle speed ratio is optional, which is more suitable for multi-slope and mountainous roads.

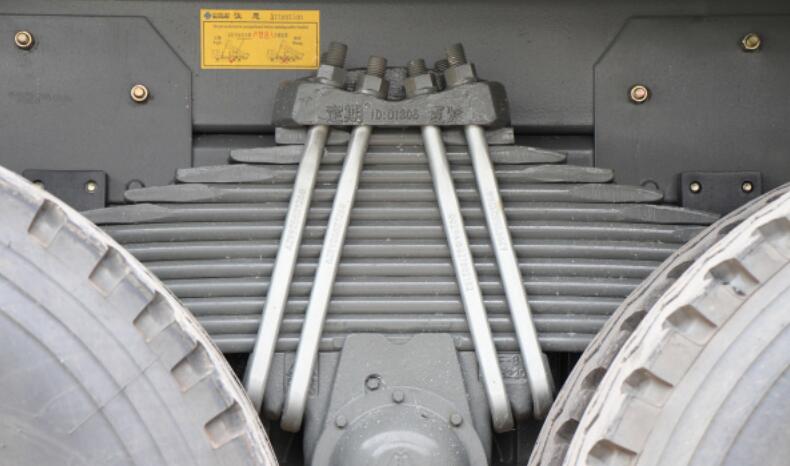

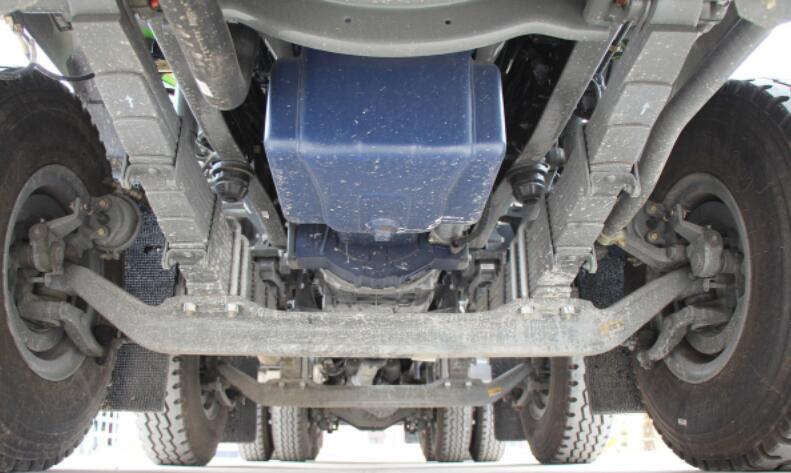

For dump trucks, the bearing capacity is very important. Howo TX dump trucks use a 8+5mm double-layer frame with a frame height of 300mm. The front and rear axles use standard multi-leaf springs, and the front axles are 11 12 pieces for the rear axle.

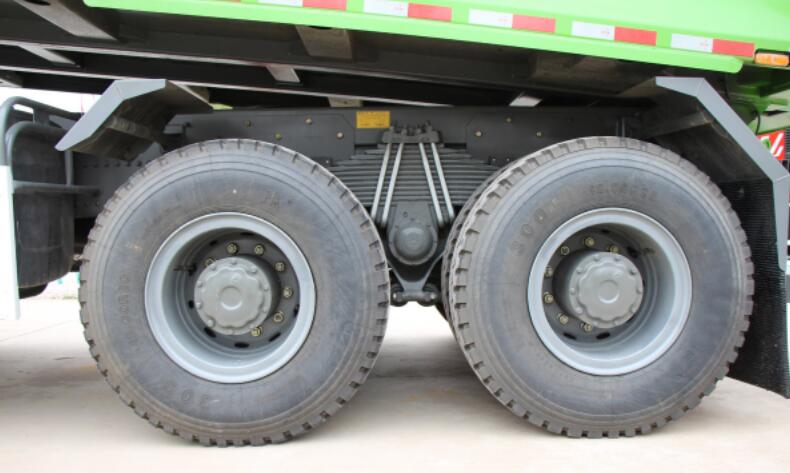

The size of the dump truck tire is 12.00R20, and the mixed pattern is used. Compared with the ordinary pattern tire, the mixed pattern tire has two good drainage capabilities, and can also maintain good driving performance and braking ability.
Appearance is also the key point that users consider when choosing a car, and urban dump truck users should not only consider the aesthetics of the appearance, but also pay more attention to its practicality, because the transportation conditions, policies and regulations of urban dump trucks are compared with ordinary dump trucks or cargo. Cars are different.

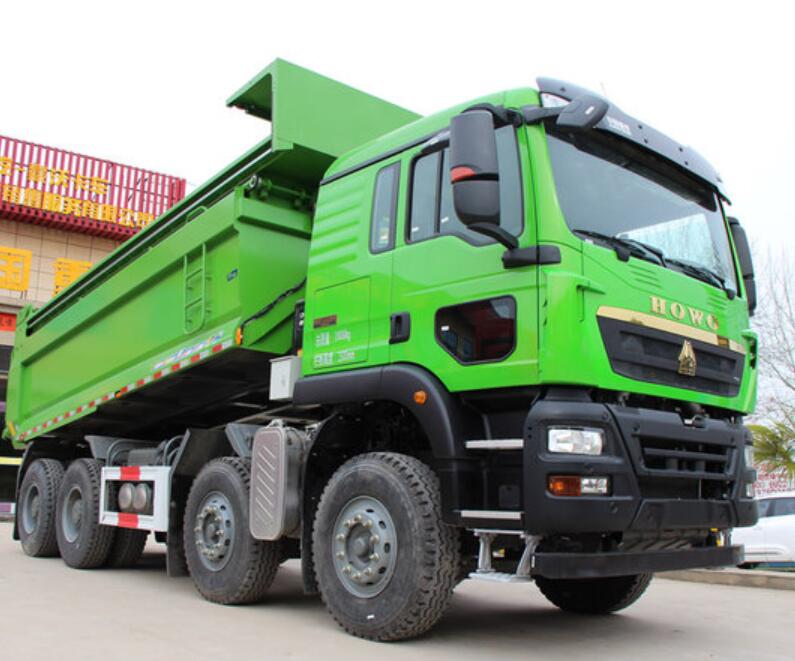

HOWO TX truck also provides a variety of paint colors, including green, yellow, white, etc., to meet various needs. The real truck adopts the common green color, which is in line with the theme of green and environmental protection in urban construction.
There is a sunshade on the top of the cab, which can reduce the interference of light on the driver's sight when driving against the sun, making driving safer.

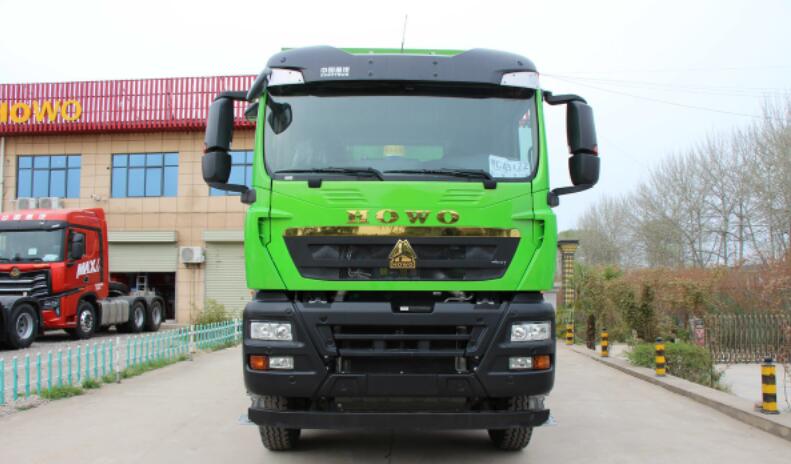

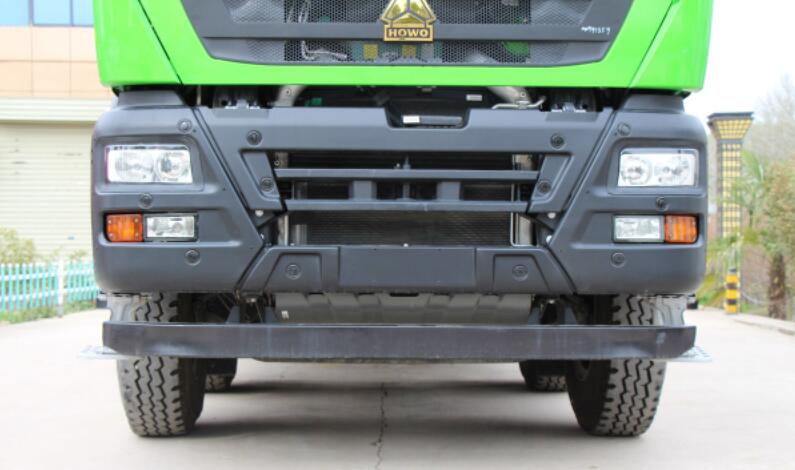

The ground clearance of this HOWO TX dump truck is very high, which ensures that the truck can still have good passability under complex working conditions, and the bumper size is very large, divided into three-section design, in the event of collision damage, it can be used separately Replacement in sections saves maintenance costs. After all, bumps and bumps are common on construction sites.
The bottom of the truck bumper is also designed with a reinforced steel anti-drilling barrier according to the requirements of the regulations. In the event of a traffic accident, it can prevent cars and pedestrians from being drawn under the chassis and improve driving safety.

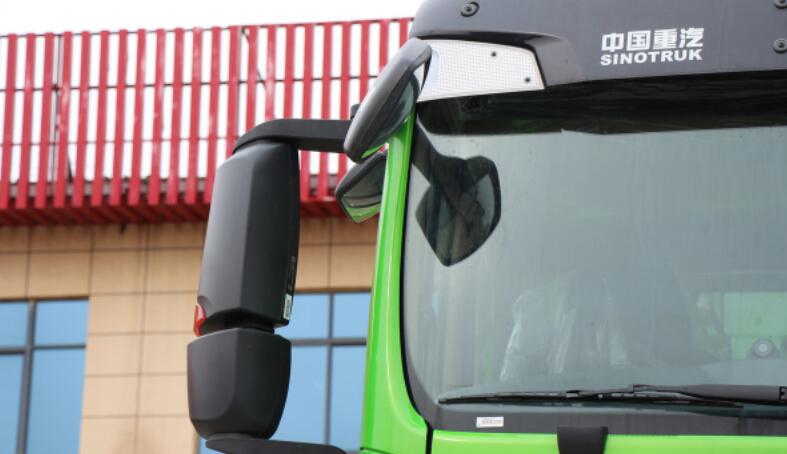

Urban dump trucks need to be transported on urban roads in addition to frequently entering and leaving the construction site. The environment is complex, and the blind spot is very large. There have been many accidents especially when turning right. A lot of efforts have been made. First of all, the rearview mirror adopts a split design, and the blind mirror is a mirror with large curvature, which has a larger viewing range.

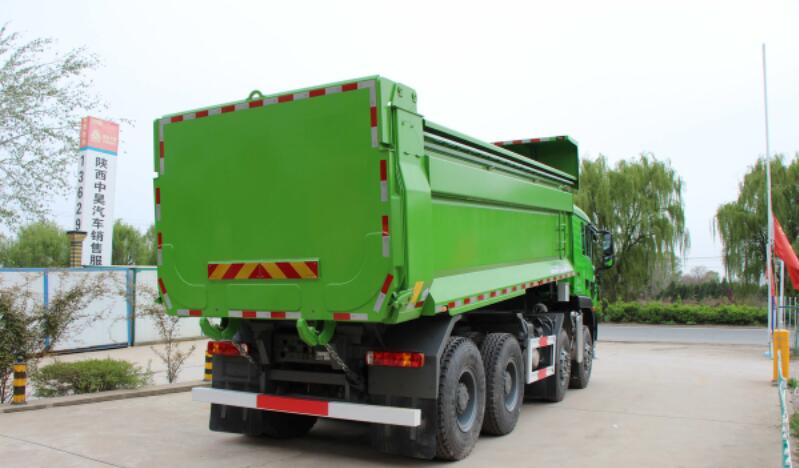

The top of this Howo TX dump truck is made of Hongchang Tianma products. There are also many bright spots in the top. The size of the cargo compartment is 5800x2350x1500mm. material. The electric folding tarpaulin cover is installed, which can improve the efficiency and reduce the problem of throwing. The driver does not need to manually cover the tarpaulin when getting on and off, which is safer and more efficient.

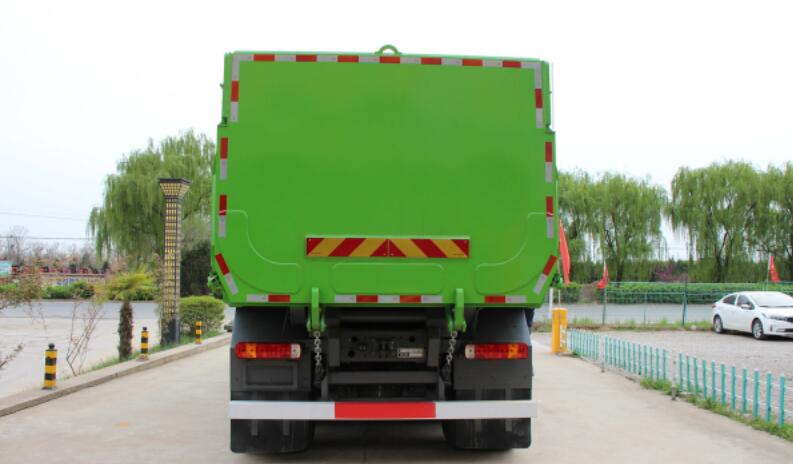

The tailgate of the cargo compartment adopts a fully sealed anti-drip design, which can realize the full closure of the cargo compartment, no spillage, effectively reduce secondary pollution, and reduce dust pollution, so as to achieve true green transportation.

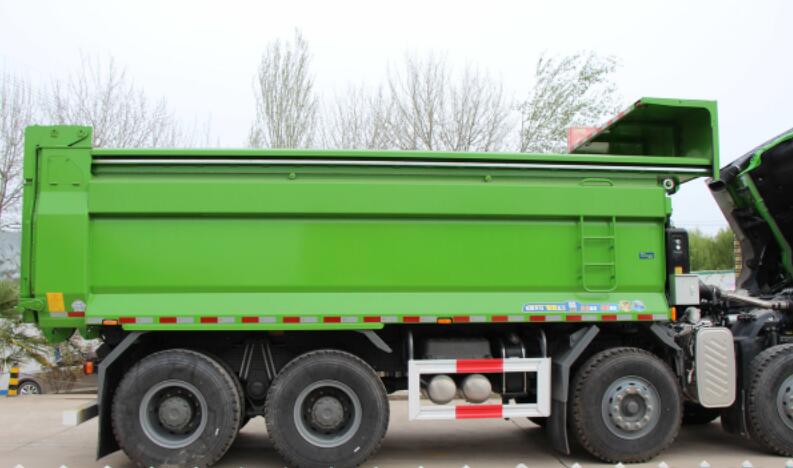

The cargo box adopts a U-shaped car structure design. Compared with the conventional cargo box, the U-shaped box is cleaner to unload, which can reduce the possibility of sticking to the box, and can reduce the center of gravity of the whole truck, and it is not easy to roll over during driving.
This HOWO dump truck is NVH customized development, with low noise and low vibration, which can create a comfortable driving environment. The four-point suspension cab adopts special shock absorption damping for engineering vehicles, which can greatly alleviate the bumps from the ground.

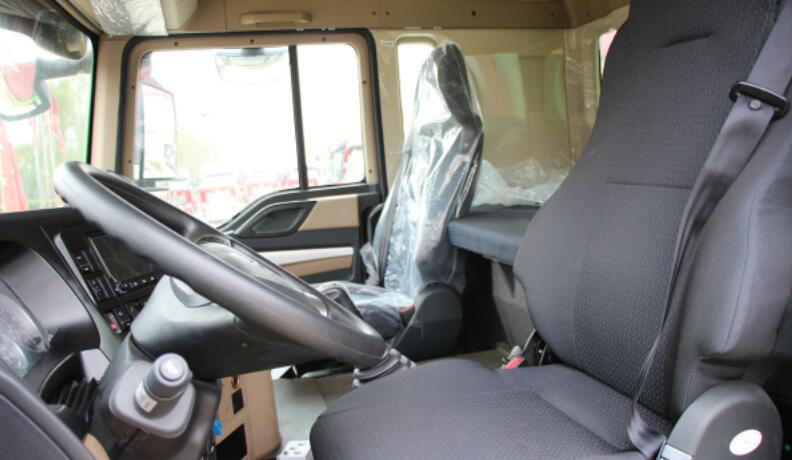

The main driver of the truck adopts the self-produced MAN technology of MAN technology, which can adjust the airbag shock absorption seat with three-stage shock absorption and adjustable three-stage support for the waist and back, which can ensure driving comfort even on bumpy roads and reduce driving. Fatigue, with an integrated seat belt that doesn't cause discomfort to the shoulders when bumping up and down the seat.
"Strong power, comfortable driving, compliance with regulations, safety and efficiency" is probably your criterion for choosing a city dump truck, but in terms of configuration, this HOWO TX dump truck fully meets the above requirements, and its unique Safety configuration and high bearing capacity are a good choice for urban dump truck users.
